Photochemical Reactor

#50 Thread

Model: 7861

Order NO.: 7861

1217

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

The photo-reaction process is one of the most common and important energy conversion processes on Earth. The photosynthesis of green plants, the vision of animals, the photovariability of coatings and polymer materials, the photographic, photolithography, and organic chemical reactions. Photocatalysis, etc., are all related to the photo-reaction process. In recent years, the photoseparation of isotopes and similar elements, the synthesis and application of photocontrolled functional systems, and the process of atmospheric pollution have been widely valued. The synthetic models that are currently used to describe these processes contain many optical reaction processes.

The photochemical reactor uses a complete set of systems, accessories, and optional principles to provide customers with the most suitable system.
> Reactor volume:250, 500, 1000ml
> Material of immersion well for Photochemical reactor are Borosilicate glass or quartz
> The light source uses Hanovia's high-efficiency UV mercury lamp: 100-1200W optional, 1000hr.
> There are many types of filters available, and a filter can be combined to select a specific wavelength light source
> Lab safety controller by Chemtron combines all the features of the digital temperature monitor and the water-flow monitor into a single versatile instrument. Plug any piece of equipment into the monitor, then if the water flow rate falls below the set level, or if the reaction temperature goes above or below the user set limits, the outlet power turns off automatically. The unit will also cut off power if the main power is interrupted. The controller then has to be reset.

Water-flow power cut-off
> Prevents damage caused by water or power failure.
> Controls 1.8kw AC power at 120* volts, 15 amperes; or 4.6kw AC power at 230 volts, 20 amperes .
> Provides Automatic Reset for power outages of less than 90 seconds' time and water line pressure drops of less than 5.0 seconds.

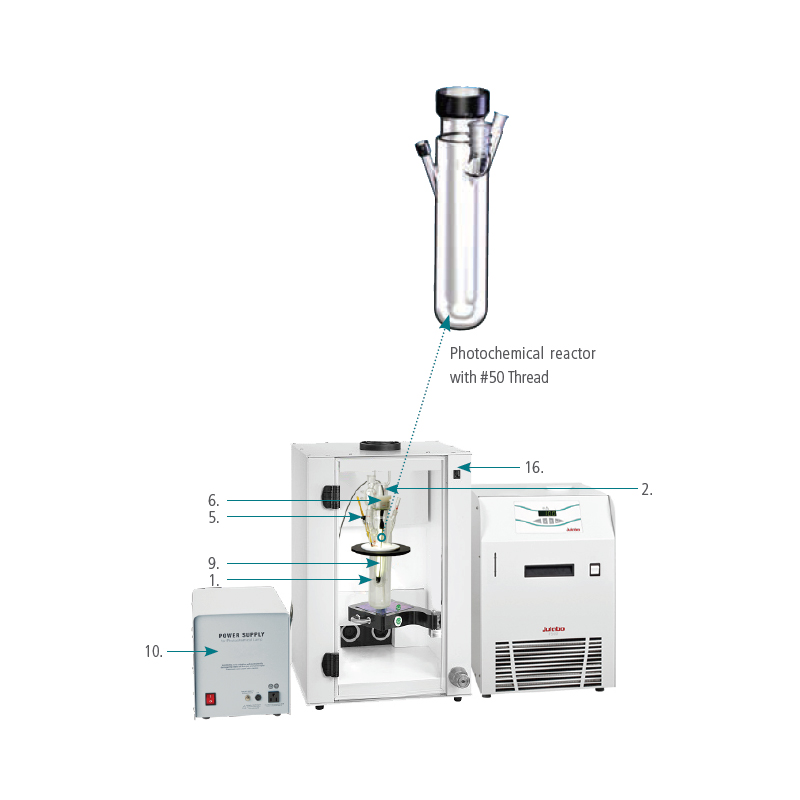

7861 Photochemical reactor
#50 Thread

250mL System C7861-410

1 7863-16 Reactor Body, 250mL, #50 Thread 1
2 7874-38 Quartz Immersion Well 1
3 7841-09 Sparger Tube 1
4 13654-14 Stir bar, PTFE 1
5 5029-10 #7 Nylon Bushing 1
6 7506-14 #50 Screw thread Nylon Bushing 1
7 12687-12 FEP Tubing 1
8 7837-02 Stand Insert, PTFE, 250mL 1
9 7825-34 Immersion Lamp, 450W 1
10 7830-61 Power Supply, 230V, 50Hz 1
11 WFM-230 Water flow monitor. 1
12 WFM-03 Flow sensor. Flow rate: 2 to 30 L/min 1
13 250WV Water shut off valve. Turns off water flow during an alarm. 1
14 WFM-AA Audible Alarm. Alarm (70 dB) sounds during under flow condition. 1
15 WFM-OC Digital Alarm Outlet. High current (170 ma) open collector output. 1
16 C9860-34 Safety reaction cabinet for the safe operation of photochemical reaction equipment. 1
17 12160 Water filter 1


500mL System C7861-430

1 7863-18 Reactor Body, 500mL, #50 Thread 1
2 7874-38 Quartz Immersion Well 1
3 7841-09 Sparger Tube 1
4 13654-14 Stir bar, PTFE 1
5 5029-10 #7 Nylon Bushing 1
6 7506-14 #50 Screw thread Nylon Bushing 1
7 12687-12 FEP Tubing 1
8 7837-05 Stand Insert, PTFE, 500mL 1
9 7825-34 Immersion Lamp, 450W 1
10 7830-61 Power Supply, 230V, 50Hz 1
11 WFM-230 Water flow monitor. 1
12 WFM-03 Flow sensor. Flow rate: 2 to 30 L/min 1
13 250WV Water shut off valve. Turns off water flow during an alarm. 1
14 WFM-AA Audible Alarm. Alarm (70 dB) sounds during under flow condition. 1
15 WFM-OC Digital Alarm Outlet. High current (170 ma) open collector output. 1
16 C9860-34 Safety reaction cabinet for the safe operation of photochemical reaction equipment. 1
17 12160 Water filter 1


1000mL System C7861-450

1 7863-20 Reactor Body, 1000mL, #50 Thread 1
2 7874-38 Quartz Immersion Well 1
3 7841-09 Sparger Tube 1
4 13654-14 Stir bar, PTFE 1
5 5029-10 #7 Nylon Bushing 1
6 7506-14 #50 Screw thread Nylon Bushing
7 12687-12 FEP Tubing 1
8 7837-10 Stand Insert, PTFE, 1000mL 1
9 7825-34 Immersion Lamp, 450W 1
10 7830-61 Power Supply, 230V, 50Hz 1
11 WFM-230 Water flow monitor. 1
12 WFM-03 Flow sensor. Flow rate: 2 to 30 L/min 1
13 250WV Water shut off valve. Turns off water flow during an alarm. 1
14 WFM-AA Audible Alarm. Alarm (70 dB) sounds during under flow condition. 1
15 WFM-OC Digital Alarm Outlet. High current (170 ma) open collector output. 1
16 C9860-34 Safety reaction cabinet for the safe operation of photochemical reaction equipment. 1
17 12160 Water filter 1
