Max. reaction volume recommendation：5000ml
Model: WRS-1501-06
Order NO.: WRS-1501-06
1454
Specific parameters will be adjusted according to product upgrades, without notice.
NEW Bench top Reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve. The unique design of the Bench top Reactor support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most fume hood.

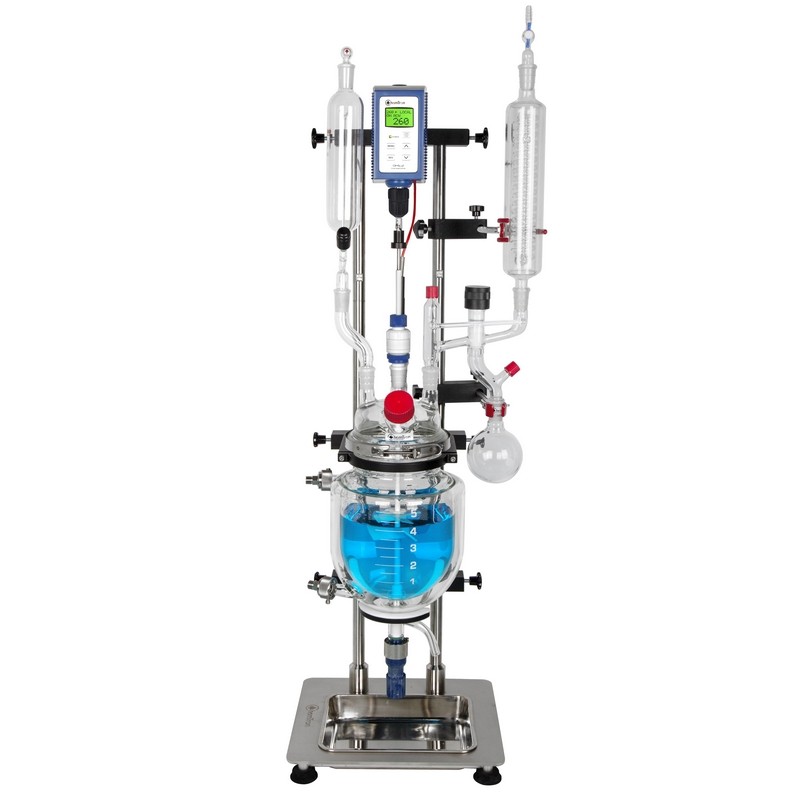

5000ml complete bench top Reactor
| Part number | Description |
| WRS-1501-061 | Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro |
| WRS-1501-062 | Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro |
| WRS-1501-061M | Complete with Glassware & Stand, Multi channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro |
| WRS-1501-062M | Complete with Glassware, Stand, Multi channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro |
Specifications
| Max. reaction volume recommendation | 5000mL |
| Flange | DN150 |
| Bore diameter of bottom valve | 0-10mm |
| Reactor lid | CN:24/40, SN:24/40(3), 45° -GL45 |
| Material of reaction vessel and lid | High quality borosilicate glass |
| Temperature range | -60~200℃ |
| Vessel pressure | suitable for atmospheric and vacuum reaction |
| Jacket pressure | up to 0.5bar |
| Material of wet part | Borosilicate glass / PTFE / PFA |
| Inlet and outlet of jacket | DN15 |
| Stirring speed | Available at 500 RPM for long-term operation, 800 RPM for short-term operation If high-speed mixing applications are required, please consult your Wiggens |
| Diameter/length of stirring Rod | Ø10mm / 650mm |
| Blade diameter | Low position: 140mm(Anchor Style Stir Paddle) High position: 70mm(4 blade angled type stir paddle) |
| Length of condenser | 300mm |
| Volume of collection flask | 2000mL |
| Volume of liquid funnel | 1000mL |
| Distance between discharge port and spill tray | 150mm |
| Weight | 37kg |
| Stand Dimensions ( W x D x H) | Approx. 550x 440x1300mm |
